Create virtual device in Android Studio

The AVD Manager is an interface in Android Studio that helps create and manage AVDs.
To open the AVD Manager, follow below steps:
  • Select Tools > AVD Manager.
  • Click AVD Manager AVD Manager icon in the toolbar.

To create a new AVD:
  • Open the AVD Manager by clicking Tools > AVD Manager.
  • Click Create Virtual Device
  • Select a hardware profile, and then click Next.
  • Select the system image for a particular API level, and then click Next.

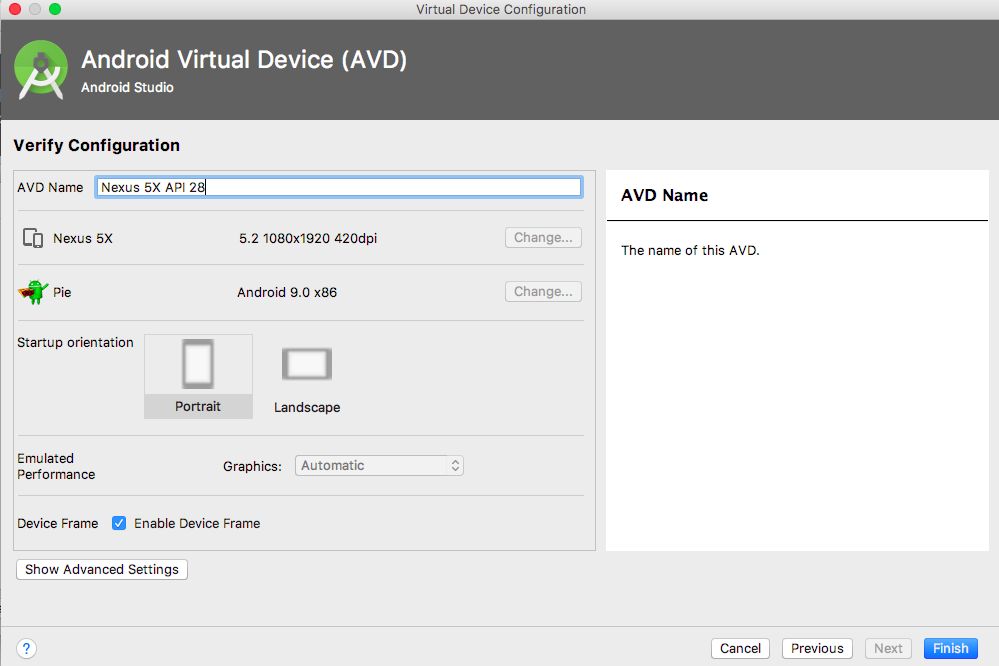

  • Verify Configuration page appears, Change AVD properties as needed, and then click Finish.
